Radium Engineering Fuel Cell Surge Tank External Pumps - 20-0695-00
Fitment Information
- Walbro F90000267/274/285/295
Product Description

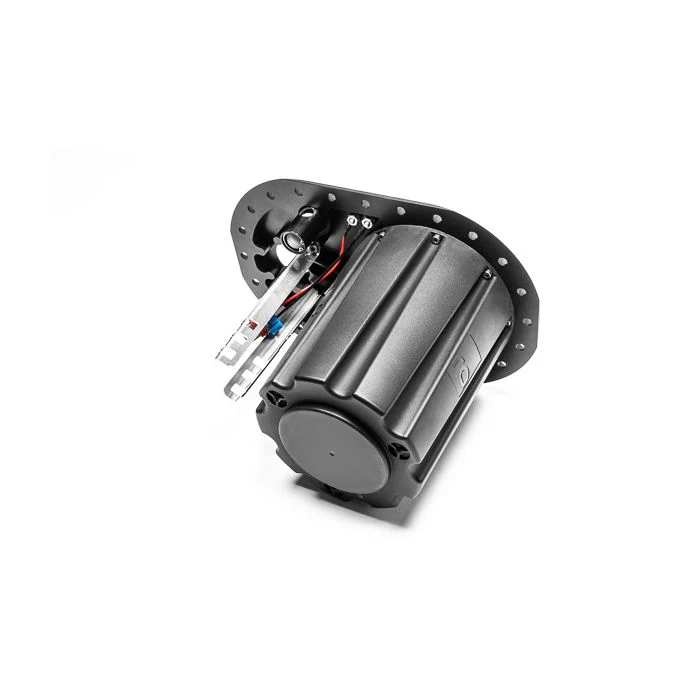

The 20-0695-00 Fuel Cell Surge Tank is only available without pumps not included. It is designed to be used with a mechanical fuel pump or inline electric pump(s). One or two -10AN (5/8") fuel pickups are used inside the surge tank. Each pickup uses a 80u (micron) filter. If two pickups are used, 20-0737 Distribution Block is recommended for pumps that use a 12AN inlet.
The lift pump electrical and plumbing for this kit is set to be compatible with Walbro F90000267/274/285/295 fuel pumps. Radium Engineering recommends the Walbro F90000295 as a lift pump for maximum flow with a 14-0143 Filter Sock.
WHAT ELSE IS NEEDED?
FUEL CELL
A fuel cell is not included with the FCST. The fuel cell MUST use a 6x10, 24-bolt fill plate flange. The distance from the outer top face to the internal botton face must be at least 7.7" (196mm). The distance from the top of the fuel cell to the bottom of the lift pump filter (lowest point of the kit) is adjustable. However, if the fuel cell is deeper than 10 inches, purchase this Lift Pump Extension.
FUEL FILLER
If you do not currently have a 6-bolt (2.18" B.C.) filler, Radium Engineering has them for both direct filling and remote filling.
VENT HOSE
A hose and/or filter must be connected to the "VENT" port fitting. For compatible vent kits and more information on how these are plumbed and routed.
Original: $522.45
-70%$522.45
$156.74Product Information
