Edelbrock Billet pulley for 8896 LS Water Pump - 8898
- Application: Application Specific
- Mounting Hole Quantity: 4
- Attachment Type: Bolts
- Belt Type: Serpentine
- Pulley Type: Serpentine
- Availability Note: Available to Order
- Warranty: 12 Months
- Inside Diameter: 5.475 in
- Material: Aluminum
- Outside Diameter: 5.850 in
- Width: 3.26 in
Install Notes
Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing; The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft; Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit; So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty; The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump
Description and Information

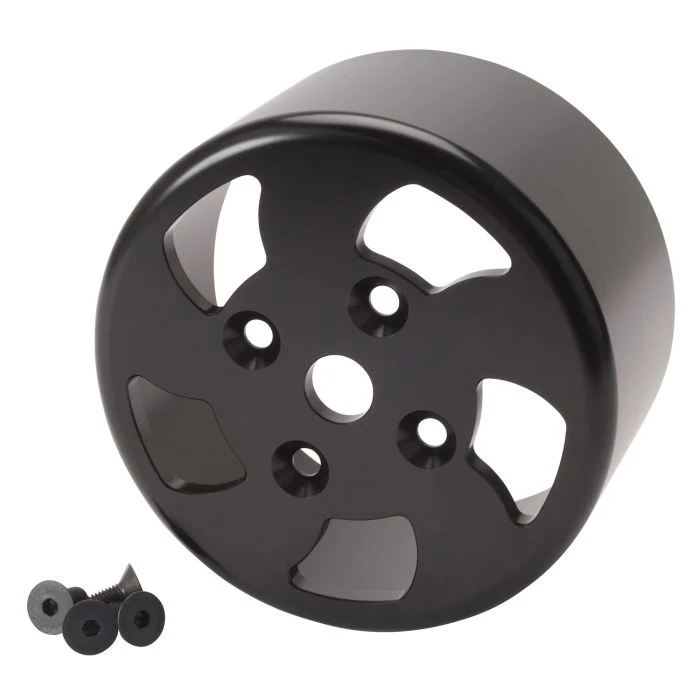

The 8898 is a hard anodized billet aluminum water pump pulley. This pulley is designed to work with our 8896 LS water pump. This pulley is a universal type design that will work with belt offsets of most GM Gen III and Gen IV small block V8 engines (LS LM LQ and LR). The pulley diameter is identical to stock and it requires a 3/4" pilot.
